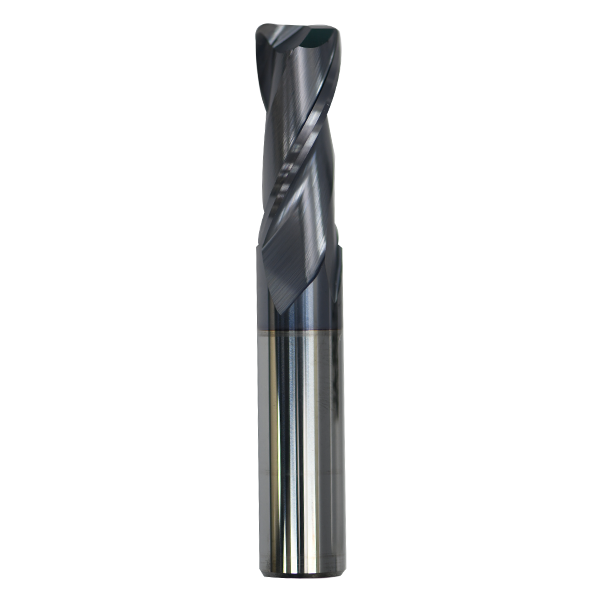

WFER-2 (TIALN)

  • WFER-2 (TIALN)
  • WFER-2 (TIALN)
產品型號:

產品敘述
  • 獨特圓弧離隙角設計。
  • 適用於硬度HRC42°以下,高硬度材,金合金鋼等高韌性素材。
  • 刀刃越近於鏡面,刃口光滑,排屑順暢,刀具壽命佳,精度佳。
  • 高速加工之刀具最佳選擇。
產品規格
產品編號
Order No
先端徑
d
R角
刃長
全長
L
柄徑
D
備註
WFER-2010-0.2R-AL 1.0 0.2R 4.5 50 4/6
WFER-2010-0.3R-AL 1.0 0.3R 4.5 50 4/6
WFER-2015-0.2R-AL 1.5 0.2R 4 50 4/6
WFER-2015-0.3R-AL 1.5 0.3R 4 50 4/6
WFER-2020-0.5R-AL 2.0 0.5R 5 50 4/6
WFER-2020-0.2R-AL 2.0 0.2R 5 50 4/6
WFER-2020-0.3R-AL 2.0 0.3R 5 50 4/6
WFER-2025-0.2R-AL 2.5 0.5R 6.5 50 4/6
WFER-2025-0.3R-AL 2.5 0.3R 6.5 50 4/6
WFER-2025-0.5R-AL 2.5 0.5R 6.5 50 4/6
WFER-2030-0.2R-AL 3.0 0.2R 8 50 4/6
WFER-2030-0.3R-AL 3.0 0.3R 8 50 4/6
WFER-2030-0.5R-AL 3.0 0.5R 8 50 4/6
WFER-2030-1R-AL 3.0 1R 8 50 4/6
WFER-2040-0.2R-AL 4.0 0.2R 10 50 4/6
WFER-2040-0.3R-AL 4.0 0.3R 10 50 4/6
WFER-2040-0.5R-AL 4.0 0.5R 10 50 4/6
WFER-2040-1R-AL 4.0 1R 10 50 4/6
WFER-2050-0.2R-AL 5.0 0.2R 13 50 6
WFER-2050-0.3R-AL 5.0 0.3R 13 50 6
WFER-2050-0.5R-AL 5.0 0.5R 13 50 6
WFER-2050-1R-AL 5.0 1R 13 50 6
WFER-2060-0.2R-AL 6.0 0.2R 15 50 6
WFER-2060-0.3R-AL 6.0 0.3R 15 50 6
WFER-2060-0.5R-AL 6.0 0.5R 15 50 6
WFER-2060-1R-AL 6.0 1R 15 50 6
WFER-2060-1.5R-AL 6.0 1.5R 15 50 6
WFER-2080-0.2R-AL 8.0 0.2R 20 60 8
WFER-2080-0.3R-AL 8.0 0.3R 20 60 8
WFER-2080-0.5R-AL 8.0 0.5R 20 60 8
WFER-2080-1R-AL 8.0 1R 20 60 8
WFER-2080-2R-AL 8.0 2R 20 60 8
WFER-2100-0.5R-AL 10.0 0.5R 25 75 10
WFER-2100-1R-AL 10.0 1R 25 75 10
WFER-2100-1.5R-AL 10.0 1.5R 25 75 10
WFER-2100-2R-AL 10.0 2R 25 75 10
WFER-2120-0.5R-AL 12.0 0.5R 30 75 12
WFER-2120-1R-AL 12.0 1R 30 75 12
WFER-2120-1.5R-AL 12.0 1.5R 30 75 12
WFER-2120-2R-AL 12.0 2R 30 75 12
